Dell EMC SC9000 Array Controller
Turbocharge your data center and lower TCO with the fast, highly scalable
Overview:
Accelerate your workloads, automate your savings
SC Series Hybrid arrays take the guesswork out of storage economics with a modern architecture that optimizes your data center for cost-savings while delivering transformational SSD, HDD or tiered performance.
SC is an integrated portfolio of array models that work together to give companies of all sizes the technology advantage they need to compete in today’s volatile markets. From affordable entry solutions offering the lowest effective $/GB1 , to large arrays providing over 2 million maximum IOPS and 6PB raw capacity2 , SC has the power to take you from where you are now to where you want to go.
Highlights include:
- Advanced auto-tiering - Achieve IOPS goals with the least expensive mix of storage media, even as performance needs evolve. Data Progression and RAID tiering eliminate manual provisioning and help your storage adapt to the unique requirements of each workload.
- Deduplication & Compression - Dramatically reduces the raw capacity required to store your data
- Multi-array Federation - Gives you freedom to make fast changes without interrupting applications and users
- World-class deployment & support options - From intuitive customer-installable solutions, to expert onsite and remote professional services, SC Series has what it takes to ensure your installation goes right the first time.
Respond to changing requirements
Self-optimizing SC arrays auto-tune your environment for day-to-day and long-term success, helping you stay agile in an unpredictable future. Based on real-time usage monitoring and application performance demands, patented SC Data Progression continually adjusts multiple drive tiers and RAID levels for maximum efficiency.
By default, all new data is written to the fastest Tier 1 drives at RAID 10 speeds, then converted to economical RAID 5/6 (on the same drives) for subsequent reads. As data ages, it’s moved to less expensive storage until it becomes more active again. Data is precisely where it’s needed, when it’s needed - the perfect combination of high IOPs and cost savings.
0-100% Flash architecture
Target specific price/performance ratios with any mix of SSDs and HDDs - then modify the mix as your needs change. Add more flash to boost performance, or “cheap and deep” spinning disk as cold data volumes grow. Hot data will always be written to your fastest drives at the fastest RAID levels.
Intelligent Data Reduction
Like many SC services, Deduplication and Compression are applied dynamically at a sub-LUN level to optimize performance and reduce capacity needs throughout the data lifecycle. Fully integrated with Data Progression, SC data reduction saves money on SSDs, HDDs - or both in hybrid systems.
Low-Cost Business Continuity
Keep mission-critical apps running during unexpected outages and disasters with seamless volume-level auto-failover between local and remote arrays. Innovative Live Volume feature is native to SCOS - no extra hardware or software is required to create your “always available” storage environment.
FEDERATE the combined performance and capacity of up to 10 arrays
Thanks to a built-in “storage hypervisor” capability, multiple heterogeneous SC Series models can be grouped in federated clusters under unified management. Need to move a volume to another array? Included Live Migrate makes it click-simple, keeping workloads online and preserving snapshot and replication relationships throughout the move. Volume Advisor offers ongoing load balancing guidance, suggesting the best initial data locations, then alerting you with optimization recommendations over time.
Always available storage
SC Series Live Volume also keeps workloads running during unexpected outages and disasters with non-disruptive autofailover between synchronized volumes on local and remote arrays. This service guards vital business operations 24/7, helps you achieve “Zero RTO/RPO” goals, and even auto-repairs your high-availability environment when a downed array comes back online.
Rich feature set protects your investment
Despite remarkably low entry and lifecycle costs, SC Series offers a comprehensive range of advanced features and integrations to ensure your array continues to add value, even as the business grows and matures.
- Powerful native management tools - New Unisphere HTML5 Web UI lets you configure SC quickly with no software installation required. Just point your browser from any mobile device to accomplish most day-to-day tasks. Popular DSM (Dell Storage Manager) client application is still available for advanced management.
- CloudIQ - Free cloud-based SaaS (Software as a Service) suite provides predictive analytics, categorized alerts, remediation recommendations and a convenient dashboard to monitor the health of your SC environment.
- Dynamic Capacity - Pervasive “thin methods” allocate capacity exclusively on demand.
- Thin snapshots - Records changes only, preserved automatically when you move data within a federation.
- Thin clones - Create virtually unlimited volume copies for VDI or Test/Dev, without consuming additional space.
- Replication - Sync/async, single-hop, multi-hop (chained), 1-to-many mixed topology, deduped for efficiency.
- Multi-protocol network support - Flexible FC and iSCSI connections, up to 33,000 MB/s bandwidth per array.
- Native application recovery tools - Replay Manager ensures reliable application consistent snapshots of Microsoft Volume Shadow Copy (VSS) enabled applications (Exchange, SQL Server and Hyper-V) and VMware virtual machines (VMs). Recover more quickly from farther back in time, with lower risk of human error.
- Chargeback - Simplifies budgeting by calculating storage costs for individual applications and departments.
- Distributed sparing - 500% faster rebuilds,5 eliminates need for dedicated spares, use all drives for I/O
- Persistent software licensing - Never pay twice for the same software, minimizes cost of upgrades
- PS Series (EqualLogic) integration - Unified management and cross-platform replication lets you combine two array platforms in a single solution.
- QoS (Quality of Service), Multi-VLAN tagging, SED Encryption, VVOLS, and more…
Trusted, enterprise-class solution
And of course SC Series is backed by the #1 market leader in flash, and the #1 leader in storage overall. Dell EMC products are ubiquitous in data centers around the world -- and you get the benefit of all that technology and business expertise!
- World-class services options - Choose from a range of comprehensive deployment and support options, including ProSupport, ProDeploy, and new Optimize Services. Our renowned team can reduce deployment costs, accelerate time to completion, and even monitor your environment to fix problems before they occur.
- Dell EMC hardware/software support - SC Hybrid arrays support popular Dell EMC products including PowerPath, ViPR, VPLEX, AppSync, RecoverPoint, Connectrix, Data Domain and more.
- Broad 3rd-party integration - Dell EMC has deep relationships with the ecosystem and application leaders that matter to you. VMware, Microsoft, Oracle, OpenStack, IBM, CommVault, VERITAS, Foglight and more.
Features:
Scale, streamline and accelerate your enterprise data center
The SC9000 provides an ideal solution for large-scale storage, high-end workloads and distributed enterprise environments. Our latest flagship array offers all the industry-leading capabilities of the SC Series line in a fully upgraded, more scalable system. Enhancements include:
- 40% more IOPS, over 110% more throughput
- Dual 8-core Intel Xeon, 4x system memory
- Intelligent deduplication and compression
- Multi-array federation and auto-failover
- Enhanced virtualization and encryption
- Cross-platform replication and shared management with PS Series arrays
The SC9000 is backed by Dell Copilot Services, which combines centralized support, education and sales resources with 24x7 active system monitoring to help improve performance and stability.
Manage storage at the data center level
Although a single SC9000 provides quick, modular expansion to over 6PB raw SAN capacity per array*, it can also be interconnected with other SC Series arrays in larger federated systems, elevating and abstracting data control across your environment.
- Included Live Migrate “storage hypervisor” feature lets you move volumes non-disruptively between arrays without remapping hosts.
- Included Volume Advisor proactively monitors all arrays for the optimal volume placement, based on customizeable policies.
Flash and hybrid performance powerhouse
Innovative all-flash and hybrid SC9000 solutions can revolutionize the speed and impact of your applications. Intelligent multi-tier SSD capability, new 12Gb SAS backend, and a wide range of HDDs and ultra-dense expansion options give SC9000 the power, throughput headroom and ultimate flexibility to meet ever-changing workload demands.
With SC9000, flash becomes practical and cost-effective at any scale, extending its proven competitive advantages to more aspects of your data-driven business.
Always available storage
SC9000 is ideal for non-stop environments such as private cloud deployments. Live Volume provides native business continuity, enabling transparent auto-failover to synchronized backup volumes on another SC series array. Live Volume keeps workloads running during unplanned outages and repairs your high-availability environment automatically when an array comes back online.
- Deeper intelligence and efficiency drives real cost savings you can reinvest in your business, with intelligent compression and deduplication for all drive types, dynamic RAID tiering and pervasive “thin” methods.
- Enhanced storage virtualization and control lets you map resources to business priorities, meeting Service Level Agreements (SLAs) for mission-critical apps, even in multi-tenancy environments, with QoS and VVols support.
- Unprecedented levels of flexibility and investment protection allows SC arrays to coexist and replicate in PS Series environments. PS Series customers can now add SC arrays if and when they choose.
Modular, enterprise-grade platform
Redundant, hot-swappable components make the SC9000 a resilient, easy-to-deploy and highly available solution. Add capacity quickly with any of five supported expansion enclosures and customize I/O connections to multi-protocol SANs (FC and/or iSCSI)
SC9000 customers can scale with confidence knowing they are deploying a true future-ready solution. Additional investment protection includes:
- Extensive third-party integrations (VMware, Microsoft, Oracle, IBM and more)
- Lifetime SSD warranty with comprehensive coverage against wear-out*
- Tiering flexibility to assimilate new technologies faster
- Optional FIPS-certified self-encrypting SSDs and HDDs
- Simplified, evergreen software licenses
A new level of Storage Center OS efficiency
SCOS 7 is a ground-breaking leap forward in the evolution of Dell’s SC platform, offering diverse environments the ideal access point to deploy uniquely adaptable, future-ready storage solutions. New capabilities include:
- Over 10:1 capacity savings with intelligent deduplication and compression*
- Federated data control with Live Migrate
- Seamless business continuity with Live Volume auto-failover between arrays
- Unified management and cross-platform replication between SC and PS Series arrays
- Quality-of-Service (QoS), VMware Virtual Volumes (VVols) support, iSCSI Datacenter Bridging (DCB)* and more…
Key SC Series OS and software advantages are summarized below. See individual spec sheets and product documentation for additional features and specific platform support.
Self-optimizing, automated storage
Based on actual use and application performance requirements, SC Series Data Progression automatically optimizes your drive tiers and RAID levels for performance and cost savings. By default, all new data is written to fastest Tier 1 drives at RAID 10 performance levels, then converted to economical RAID 5/6 for subsequent reads.
As data ages, it’s moved to less expensive storage until it becomes more active again. All-flash and hybrid arrays can leverage the unique attributes of write- and read-intensive SSDs in combination. Data is precisely where it’s needed, when it’s needed - the perfect combination of high IOPs and cost savings.
Space savings in the data center
SC Series delivers unprecedented levels of platform efficiency, plus the most comprehensive data reduction.
- Intelligent deduplication and compression for all storage tiers and drive types
- Dynamic Capacity (thin provisioning) completely separates storage allocation from utilization, enabling you to allocate any size volume up front yet only consume physical capacity on write
- Thin snapshots solve tradeoff issues between granularity and capacity cost savings
- Remote Instant Replay (“thin replication”) offers a cost-effective disaster recovery solution
Advanced data mobility, business continuity and security
The SC Series Live Migrate “storage hypervisor” feature, included with the base product, allows you to move data seamlessly between arrays without remapping your hosts, optimizing utilization of available capacity and cache across federated multi-array systems.
Live Volume auto-failover offers a native business continuity solution, providing volume-level protection from unplanned outages with no need for additional hardware or software.
And, to avoid data loss or compromise from physical security breaches, the SC Series offers a complete range of FIPS 140-2 certified self-encrypting drives (SEDs) in both SSD and HDD formats, plus support for leading third-party key managers.
Intuitive management at your fingertips
Dell Storage Manager (DSM) and new Unisphere for SC HTML 5 Web interface provides comprehensive monitoring and management of all local and remote SC Series arrays. Streamline administration and reduce operating costs with advanced features like volume-level QoS, VVols support and departmental “charge-back” reporting, allowing instant visibility and control of a multi-terabyte, multi-location environment.
DSM also allows you to perform day-to-day tasks across SC and PS Series arrays from a single management interface. Easy-to-use data replication and migration between platforms gives PS customers flexibility to add SC arrays to their environment, if and when they choose.
Data center automation with leading technology partner integrations
SC Series features a vast array of integration points with VMware, Microsoft, Oracle, OpenStack, IBM, CommVault, Symantec, Foglight and more. VMware® vSphere™ plug-in, vCenter™ SRM adapter and VAAI support help you manage storage and virtual machines together.
With the introduction of Application Protection Manager for Oracle and now enhanced for the Linux environment, you can create application-consistent Replays for Oracle databases. Combined with Storage Center Data Instant Replay (DIR), it will ensure reliable application, consistent backup and recovery of Oracle and Microsoft Volume Shadow Copy (VSS) enabled applications (Exchange, SQL and Hyper-V) and VMware virtual machines (VMs).
Dell Storage SC Series expansion enclosures
With up to 1024 total drives and 6PB* raw capacity in a single array, the SC9000 is massively scalable. All data is managed through the primary storage controller, deployed in redundant pairs. To expand capacity, you can mix and match from any of the five supported expansion enclosures, depending on your specific performance, cost or density needs.
Options are available for ultra-dense (84 drives in 5U) and new high-performance 12Gb SAS enclosures. Adding a new enclosure is simple - the new drives can be automatically assimilated into the existing virtualized pool, or set up as their own standalone pool. Data-in-place upgrades* make it easy to change controllers and other key components, or migrate from legacy SC Series arrays.
4:1 All-Flash Storage Efficiency Guarantee
SC Series arrays are efficient in ANY configuration (all-flash, hybrid and HDD) - but we know many businesses are especially concerned about expense when deploying all-flash arrays. That’s why we’re taking the risk out of AFAs by guaranteeing 4:1 efficiency for all-flash SC configurations. Dell EMC promises our all-flash arrays will provide an effective logical storage capacity at least four times the physical capacity of your purchased drives - or we’ll give you more drives at no charge.*
Technical Specifications:
| SC Hybrid | SCv3000 Series | SC5020 | SC7020 | SC9000 |
|---|---|---|---|---|
| Chassis Overview | ||||
| Rack size | 3U | 3U | 3U | 2U |
| Format | All-in-one unit (dual controllers, internal drive bays, network I/O) Additional capacity via optional expansion enclosures | Controller unit (includes network I/O, no internal drive capacity) | ||
| Internal storage capacity | 30 x 2.5” drive bays | SCv3000: 16 x 3.5” bays SCv3020: 30 x 2.5” bays |
||
| Controllers | Dual hot-swappable per chassis (active/active) | Single controller per chassis, deploy in active/active pairs | ||
| Processors | 1 per controller Intel Xeon E5-2603v4, 1.7GHz, 6 cores |
1 per controller Intel Xeon E5-2630v3, 2.4GHz, 8 cores |
2 per controller Intel Xeon E5-2628v3 2.5GHz, 8 cores |
2 per controller Intel Xeon E5- 2667v3, 3.2GHz, 8 cores |
| System memory | 64GB per controller 128GB per array |
128GB per controller 256GB per array |
256GB per controller 512GB per array |
|
| Operating system | SCOS 7.2 or higher | SCOS 7.2 or higher | SCOS 7.1 or higher | SCOS 6.7 or higher |
| Expansion Capacity | ||||
| Max raw capacity | 1PB | 2.16PB | 4PB | 6PB |
| Maximum drive count | 222 | 222 | 606 | 1024 |
| Supported expansion enclosures | 12Gb SAS SC400: 12 x 3.5” bays SC420: 24 x 2.5” bays SC460: 60 x 3.5” bays |
12Gb SAS SC400: 12 x 3.5” bays SC420: 24 x 2.5” bays SC460: 60 x 3.5” bays |
12Gb SAS SC400: 12 x 3.5” bays SC420: 24 x 2.5” bays SC460: 60 x 3.5” bays 6Gb SAS SC200: 12 x 3.5” bays SC220: 24 x 2.5” bays SC280: 84 x 3.5” bays |
12Gb SAS SC400: 12 x 3.5” bays SC420: 24 x 2.5” bays SC460: 60 x 3.5” bays 6Gb SAS SC200: 12 x 3.5” bays SC220: 24 x 2.5” bays SC280: 84 x 3.5” bays |
| Storage media support | SAS, NL-SAS (different drive types, transfer rates and rotational speeds can be mixed in same system) SSD: Write-intensive and read-intensive drives HDD: 15K, 10K, 7.2K RPM |
|||
| Network and Expansion I/O | ||||
| Front-end-network protocols | FC, iSCSI, SAS (supports simultaneous multiprotocol: iSCSI + FC or iSCSI + SAS) | FC, iSCSI (supports simultaneous multiprotocol) | ||
| Max 32Gb FC ports | NA | 8 per array (SFP+) | 24 per array (SFP+) | 32 per array (SFP+) |
| Max 16Gb FC ports | 8 per array (SFP+) | 8 per array (SFP+) | 24 per array (SFP+) | 40 per array (SFP+) |
| Max 100Gb iSCSI ports | NA | 8 per array (QSFP28) | 16 per array (SFP28) | 12 per array (QSFP28) |
| Max 25Gb iSCSI ports | NA | 8 per array (QSFP28) | 16 per array (SFP28) | 20 per array (SFP28) |
| Max 10Gb iSCSI ports | 16 per array (SFP+ or BASE-T) | 16 per array (SFP+ or BASE-T) | 32 per array (SFP+ or BASE-T) | 32 per array (SFP+ or BASE-T) |
| Max 12Gb SAS (front-end) | 8 per array | 8 per array | NA | NA |
| Management ports | 2 per array (1Gb BASE-T) | |||
| Back-end expansion protocols | 12Gb SAS | 12Gb SAS (also supports 6Gb expansion) | ||
| Max back-end expansion ports | 8 | 8 | 24 | 40 |
| SC Hybrid | SCv3000 Series | SC5020 | SC7020 | SC9000 |
| Functional & Performance | ||||
| Array configurations | All-flash, all-HDD, or hybrid mix | |||
| Storage format | Native block (SAN) | |||
| Max SAN hosts | 250 | 500 | 500 | 500 |
| Max initiator ports | 500 | 1000 | 1000 | 1000 |
| Max LUN size | 500TB | 500TB | 500TB | 500TB |
| Max number of LUNs | 1000 | 2000 | 2000 | 2000 |
| Max number of snapshots | 4096 | 8192 | 16,384 | 32,000 |
| Max IOPS | 665,000 | 1,025,000 | 1,200,000 | 2,220,000 |
| Max IOPS (with latency <1ms) | 540,000 | 818,000 | 1,050,000 | 2,085,000 |
| Max IOPS (80% reads, 20% writes) | 231,000 | 330,000 | 346,000 | 502,000 |
| Max throughput (reads) | 19,000 MB/s | 19,000 MB/s | 29,000 MB/s | 33,000 MB/s |
| Max throughput (writes) | 9,500 MB/s | 9,500 MB/s | 14,000 MB/s | 19,000 MB/s |
| Data Optimization | ||||
| Auto-tiering method | Policy-based migration based on real-time data usage, customizable 512KB-4MB page size. | |||
| Auto-tiering structure | Up to 3 primary (media-based) tiers total, up to 2 SSD tiers (write- and read-intensive SSDs) | |||
| RAID tiering | Auto-provisions and dynamically restripes multiple RAID levels on the same tier; eliminates need to pre-allocate RAID groups | |||
| Tiering customizations | User-defined profiles, option to “pin” volumes to any tier or RAID level | |||
| RAID support | RAID 0, 1, 5, 6, RAID 10, and RAID 10 DM (Dual Mirror); any combination of RAID levels can exist in single array | |||
| Thin provisioning | Active by default on all volumes, operates at full performance across all features | |||
| Thin snapshots | Records changes only, snapshots auto-migrate to lower-cost storage | |||
| Intelligent deduplication and compression | Compression only, selectable option per volume | Selectable option per volume “Deduplication + compression” mode “Compression-only” mode | ||
| Data Mobility and Migration | ||||
| Replication | Heterogeneous arrays (SC Series any-to-any) Synchronous/Asynchronous via FC or iSCSI Target/source relationships may be one-to-many or many-to-one Supports all SC data services on source and target volumes Change replication types and topologies on demand Supports cross-platform replication with PS Series/EqualLogic arrays (either direction) |
|||
| Volume mobility | Live Migrate (included in base product) enables host-transparent data movement among arrays; see also Federation section | |||
| Federated multi-array systems | Live Migrate (included in base product) enables host-transparent movement of volumes among arrays Snapshots maintained/preserved during migration | |||
| Thin Import | Space-efficient, non-disruptive data migration from PS Series (EqualLogic) and MD3 arrays | |||
| Thin Clones | Clone standalone volumes with zero duplication of data Clones maintain independent snapshots and replication Ideal for VDI, test/dev, other applications that require discrete instances of common data More efficient than dedupe for database copies |
|||
| Data Protection, Disaster Recovery, Security | ||||
| Business continuity | Live Volume bi-directional auto-failover, auto-repair Heterogeneous arrays (SC Series any-to-any, except SCv2000) Continuous operations, disaster recovery, disaster avoidance Includes third-site (tertiary) replication options with Live Volume Managed Replication Zero RTO/RPO with customizable site failover SLAs per volume VMware Metro Stretch Cluster, VMware Site Recovery Manager support |
|||
| Thin snapshots | Records changes only, snapshots auto-migrate to lower-cost storage | |||
| Replay Manager | Application-consistent snapshots in Microsoft, VMware, Oracle environments | |||
| Data-at-rest encryption | Supports self-encrypting drives (SEDs) Full Disk Encryption (FCE) based on AES-256 Drives certified to FIPS 140-2 Level 2 Key Management Server (KMS) options available for FIPS 140-2 Level 1, 2 and 3 |
|||
| External key manager support | Gemalto’s SafeNet KeySecure k460, SafeNet KeySecure k250, SafeNet KeySecure k150v Thales EMS 200 | |||
| Management | ||||
| Management interface | Browser-based (HTML 5)
Client application
|
|||
| Federation | Create large multi-array systems under unified management, with seamless workload migration between arrays via included Live Migrate feature. Add arrays non-disruptively, efficiently utilizing their combined capacity and performance. Volume Advisor monitors federated arrays to suggest optimal data placement and load balancing. Volume movement does not impact snapshots or replication data protection. Federate like or unlike arrays, all SC models supported. | |||
| Scripting support | Microsoft PowerShell API RESTful API |
|||
| Host OS support | Microsoft Windows Server, SLES, VMware, Citrix XenServer, RedHat | Microsoft Windows Server, Oracle Solaris, HP-UX, Oracle Linux, IBM AIX, Novell NetWare, SLES, Apple, HPTru64, VMware, Citrix XenServer, RedHat | ||
| Third-party application integrationt | VMware, Microsoft, IBM, OpenStack, Symantec, CommVault, Foglight, Docker | |||
| Data-in-place upgrades | NA | Transfer drives from SC4020 head unit and any expansions enclosures directly to new SC5020 or SC7020 system. | Transfer drives from SC4020 head unit and any expansions enclosures directly to new SC5020 or SC7020 system. | NA |
| Coexistence with PS Series arrays | Replication in either direction Day-to-day management from a single interface Thin import: space-efficient, non-disruptive data migration from PS Series arrays |
|||
| Certifications | VMware vSphere Metro Storage Cluster, VMware SRM, Veritas Storage Foundations Suite, IBM VIOS Recognized, Oracle Validated Infrastructure (OVI); see Dell Storage Support Matrix for additional certifications and details | |||
| Reporting/alerts | Support assist (phone home), remote diagnostics and performance monitoring, automated alerts, reports and notifications, departmental chargeback | |||
| Firmware updates | Online, non-disruptive. Firmware may be set to download automatically, with option to trigger installation manually if desired. |
|||
| Workload management | QoS, VVOLs | |||
| SC Hybrid | SCv3000 Series | SC5020 | SC7020 | SC9000 |
| Physical | ||||
| Rack size | 3U | 3U | 3U | 2U (single controller only) |
| Height | 13.33 cm (5.25 inches) | 13.33 cm (5.25 inches) | 13.33 cm (5.25 inches) | 8.73 cm (3.44 in) |
| Width | 44.5 cm (17.52 inches) | 44.5 cm (17.52 inches) | 44.5 cm (17.52 inches) | 8.73 cm (3.44 in) |
| Depth | 78.5 cm (30.9 inches) | 78.5 cm (30.9 inches) | 78.5 cm (30.9 inches) | 8.73 cm (3.44 in) |
| Weight at max configuration | 24.22 kg (53.4 lb) | 24.22 kg (53.4 lb) | 24.22 kg (53.4 lb) | 8.73 cm (3.44 in) |
| Weight empty | 15.15 kg (33.4 lb) | 15.15 kg (33.4 lb) | 15.15 kg (33.4 lb) | 8.73 cm (3.44 in) |
| Rack support | ReadyRails II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes, or tooled mounting in 4-post threaded-hole racks | |||
| Power | ||||
| Power/wattage | 2 hot-swappable power supplies (1378W or 1485W options available, wattage type not interchangeable after point of sale) |
2 hot-swappable 1485W power supplies |

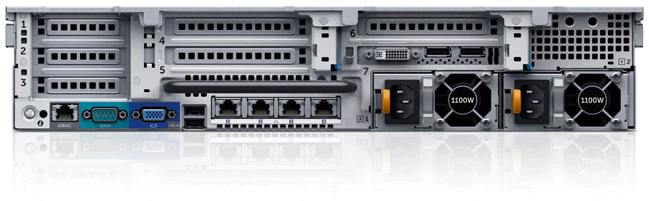

2 hot-swappable 1100W 80 PLUS Energy Star Platinum-certified power supplies | |
| Maximum output power | 1378W supply option: 1378 W 1485W supply option: 1485 W |
1485 W | 1100 W | |
| Maximum input power | 1378W supply option: 1584 W 1485W supply option: 1688 W |
1688 W | 1200 W | |
| Maximum input current | 1378W supply option: 16 A 1485W supply option: 8.8 A |
8.8 A | 12A | |
| Maximum inrush current | 55A for 10 ms or less | 55A for 10 ms or less | 25A for 10 ms or less | |
| Nominal input voltage operating range | 1378W supply option: 100-240 VAC 1485W supply option: 200-240 VAC |
200-240 VAC | 100-240 VAC | |
| Nominal input frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | |
| Thermal output/heat dissipation (maximum) | 1378W option: 5,770 BTU per hour 1485 option: 5,760 BTU per hour (all-in-one base appliance, no expansion enclosures) | 5,760 BTU per hour (all-in-one base appliance, no expansion enclosures) | 4,100 BTU per hour (per controller) | |
| Environmental Operating Conditions | ||||
| Operating temperature | 50 - 95°F (10 - 35°C) | 41 - 104°F (-5 - 40°C) | ||
| Non-operating temperature | -40 - 149°F (-40 - 65°C) | -40 - 149°F (-40 - 65°C) | ||
| Operating humidity ranges (non-condensing) | 10% to 80% with 29°C (84.2°F) maximum dew point | |||
| Non-operating humidity (noncondensing) | 5% to 95% with 33°C (91°F) maximum dew point | |||
| Inlet type | NEMA 5-15/CS22.2, n°42 | |||
| Services, Warranties | ||||
| Services | Dell ProSupport with deployment and consulting services. Optional ProSupport Plus is available offering proactive and preventative services to improve performance and stability. Dell Optimize is available for additional ongoing strategic counsel and guidance from a highly trained system analyst. | |||
| Diagnostics engine | Integrated Dell Remote Access Controller (iDRAC) | |||
| System sizing | Dell EMC Live Optics | |||
| Drive warranty | All SSDs are warrantied for full lifetime wear-out replacement with valid service agreement. SSD warranty covers all formats: SLC, MLC an d TLC | |||
Solutions & Services:
Dell EMC offers complete end-to-end services
Optimizing the IT lifecycle is vital. Dell EMC has expert services* for all lifecycle phases that save you time and resources, reduce effort, and improve your IT experience.
ProSupport Enterprise Suite
Gain the freedom to focus on your business transformation with the support expertise and insights Dell EMC is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and service account management.
ProDeploy
ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Trust Dell EMC experts to lead deployments from basic hardware installations through planning, configuration and complex integrations. Our complete suite of deployment services and professional certifications helps you achieve business outcomes today and tomorrow.
Training
Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilize your new technology to its full potential.
Consulting
Consulting services give expert guidance to help you grow, optimize and transform your IT environment at your own pace and budget. We employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. We give you the confidence that your project will be done right and on time.
Documentation:
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
