Dell PowerVault NX200 Tower Network Attached Storage
Simple, small-business file storage built on enterprise hardware

Key Benefits:

Simple data consolidation for the small business

The PowerVault NX200 comes pre-configured with 4 hot-pluggable SATA hard drives in a RAID 5 setup. Capacity options of 1TB, 2TB, 4TB and 8TB ensure that there is an adequate solution for every small business. Start consolidating and transferring data that has been accumulated on laptops and desktops around the office onto a centralized storage unit. Not only is the NX200 a secure place to keep your data, but it is also a single point to backup your data and restore your data in the event of a disaster.

Use the CIFS/SMB file sharing capabilities to consolidate your file-sharing resources and help improve productivity. Users can now easily collaborate because they can share data across Windows and non-Windows clients. Create snapshots using Volume Shadow Copy (VSS) as an added measure of protection.

Enterprise technology for the small business

The PowerVault NX200 is designed to offer the right level of capacity and storage software to keep you efficient. It also can leverage the right amount of enterprise technologies to keep your small business data secure and make your operation reliable.

Hybrid RAID with the S300 RAID controller (combines hardware and software RAID), enterprise-class hard drives with high 24/7 duty cycles are a sure fit for a businessclass NAS that needs to run without interruption. In addition, the NX200 enterprise class SATA hard drives have a higher MTBF (Meantime Between Failure) rating, exceeding consumer grade SATA drives in reliability, paired with a 24/7 duty cycle rating for continuous operation.

Remote system monitoring and management through iDRAC Express lets small business administrators collect system information and perform simple configuration tasks even when the OS is not running. When the NX200 is deployed as a departmental or ROBO (Remote Office Branch Office) solution it can be accessed remotely.

System management through Remote Desktop Protocol (RDP) can provide a familiar Windows interface from any Windows client that supports RDP to manage the NX200.

Setup and manage your information with ease

Windows Storage Server 2008 Basic (WSS2008 Basic) is based on Windows Server 2008, a time-proven enterprise-class operating system that can be found in data centers around the world today. WSS is backed by Microsoft support and maintained through continuous updates, bug-fixes and security patches. Not only is WSS2008 built upon the hugely successful Windows 2008 Server OS, but it is also as easy to use as your average Windows desktop.

Doesn't waste time building file servers from scratch. The PowerVault NX200 arrives with everything you need to easily share information, saving you valuable time. Dell integrates Microsoft's Windows Storage Server 2008 with convenient setup wizards, like the Initial Configuration Task tool, to get your NAS up and running quickly with few steps. It seamlessly integrates into your current Windows environment, allowing you to leverage the same management and protection tools already deployed. In fact, Windows Storage Server 2008 does not require additional Client Access Licenses (CALs)-an instant benefit.

The NX200 is a great choice for any small business with entry-level file sharing needs. It leverages enterpriseclass Dell server technology and a services and support organization qualified to help businesses from one to many thousands of users. All of this is made easy through the use of tools that WSS2008 Basic provides.

Product Views:

Front View

Front Open View

Rear View

Internal View

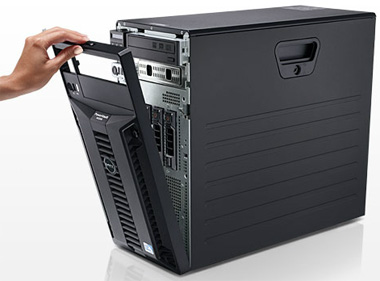

Designed with the small business in mind Color-coded monitor, keyboard, mouse and network ports for easy setup and an oversized fan for reduced noise while operating.	Designed for easy maintenance Snap-off front bezel provides easy access to the hot-swap hard-drive bays in the front of the system.
Designed for reliability All four enterprise-quality hard drives are mounted in high-grade carriers and are hot-swappable, allowing you to remove a failed drive while the systems is still running.	Design for easy operation The interactive LCD provides information about the systems name, IP address, temperature, management IP address (if you desire remote management) and service tag or host name.
Design for performance Intel processor, 2GB of memory and hardware RAID give you adequate performace to quickly access and share your files.	Designed for easy setup The NX200 can be initially set up, with a monitor and keyboard, without connecting to a network, and ongoing management can be done using a remote desktop connection.

Technical Specifications:

PowerVault NX200
Operating System
Operating System	Windows Storage Server 2008 Basic Edition 64-bit
File Access Protocols
File Access Protocols	CIFS, FTP
Processor
Number of Processors	1
Processors Supported	One Dual-Core Intel Celeron Processor G1101 (2M Cache, 2.26 GHz)
Storage
Internal Storage	Capacity Options 1TB, 2TB, 4TB or 8TB
Maximum Internal Storage	8TB
Drives Supported	SATA (7.2K): 250GB, 500GB, 1TB, 2TB
Hot-Swap HD options	Four 3.5" SATA drives
RAID
Hardware RAID Levels (custom-configurable options)	R5/R5 (OS/DATA)
Hardware RAID Levels (factory-installable options)	0, 1, 5, 10, 6
RAID Controller	PERC S300
External	None
External HBAs (non-RAID)	None
Storage
Type of Data Supported	File
Memory	2GB, 2x1GB, 1066 MHz, 2R UDIMM
Internal Data Drives	Four 3.5" data drives
Max Internal Capacity	8TB raw
External Scalability	RD1000
Management
Management	BMC, IPMI2.0 compliant Dell OpenManage™ featuring Dell Management Console Unified Server Configurator LifeCycle Controller enabled via optional: iDRAC6 Express
Remote Management	Optional iDRAC Express or Native Java RDP plug-in
Data Protection Features
Data Protection Features	Snapshots (VSS)
Cluster Support	No
Chassis
Form Factor	Tower
Dimensions	17.3 H x 8.6 W x 20.5 D (in) 440 H x 218 W x 521 D (mm)
Slots	2 PCIe x8 + 1 PCIe x16 + 2 PCIe x1
Availability	Hot-plug hard drives
Rack Support	None
Regulatory
Regulatory and Environmental Compliance	Regulatory Model: E09S Regulatory Type: E09S001
Power supply
AC Power/Max Current	Single cabled power supply (375W)

Services:

Dell ProSupport

Designed to address the technology challenges you face today.
Dell ProSupport starts with the Dell ProSupport for IT service model designed for IT professionals like you. Dell ProSupport for IT provides:

• 7x24 Direct access to Dell Expert Centers
• Fast-track dispatch for Dell-certified technicians
• Escalation management through Dell's Global Command Centers

Next, Dell ProSupport Options align to the way you use technology - rapidly responding to your needs, protecting your investment, your productivity and your sensitive data, and providing enhanced proactive support services to help reduce the risk and complexity of managing your infrastructure.

Speed of Response	Protection	Premium Proactive
Mission Critical - Perfect for server and storage environments where avoiding unplanned downtime and reducing recovery time through priority response are a must. The package includes priority 4-hour on-site2 service or optional 2-hour response with 6-hour hardware repair, Dell's proven Critical Situation process and emergency dispatch.	Data Management and Protection Keep Your Hard Drive helps you retain control of sensitive data Hard Drive Data Recovery provides unlimited attempts to recover data from a failed hard drive Certified Data Destruction wipes your hard drive clean and destroys data	Enterprise-Wide Contract - Provides enhanced proactive capabilities through: Designated Service Delivery Manager Performance benchmarking and custom reporting Planning and assessments Proactive Maintenance - Maximizes the availability and stability of your infrastructure proactively. The package includes a detailed system assessment and implementation of driver or firmware updates and upgrades for your server or storage systems. Remote Advisory Options - Provides telephone and Internet access to technical expertise for specialized applications and solutions such as Microsoft Exchange, Virtualization, and more.

Dell ProConsult

Storage Consulting from Dell offers a comprehensive suite of assessment, design and implementation services to help customers get the most from their DELL/EMC CX series product, covering data management, application performance, data protection and cost of ownership. Dell Consultants can provide practical action-oriented plans, to deliver specific, predictable and measured outcomes through high-impact, short duration projects.

• Dell/EMC SAN Solution Design (standard and custom). This is the provision of a Fiber Channel/iSCSI SAN solution design, incorporating array, Storage Area Network and integration of key applications. Key deliverables include a design document and an implementation guide mapping customer requirements to the most appropriate architecture and technical solution.
• Dell/EMC Local Data Protection Design (Add on to SAN Solution Design). This is the provision of design services for data protection within the same SAN utilizing EMC software snapshot capability.
• Dell/EMC Remote Data Protection Design (Add on to SAN Solution Design) This is the provision of design for data protection across one or more SAN, utilizing EMC software replication capabilities.
• Dell/EMC Backup Integration Design (Add on to SAN Solution Design). This is the provision of design to integrate backup software such as Symantec® , Commvault® and Legato® with EMC software snapshot or replicas capability.

Customization and Set-Up

EDT Installation Enhanced installation and configuration with Dell professional project management and documentation. A project manager will be acting as the single-point-of-contact for the entire installation project from pre-site audit to co-ordination of the installation and delivery of post-project documentation.

Training

Comprehensive Training Get the skills you need to keep pace in today's competitive IT environment with comprehensive training and certification courses. Dell offers a vast array of instructor-led classes and online training courses in a range of topics from server maintenance to in-depth technical overview of specific systems.

Documentation:

dell powervault nx200 datasheet (.pdf)
